RADIAN MEASURE
Radians into degrees
Degrees into radians
Coterminal angles
The multiples of π

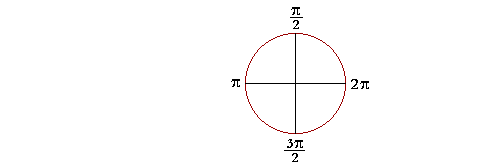

IN THE RADIAN SYSTEM of angular measurement, the measure of one revolution is 2π.
(In the next Topic, Arc Length, we will see the actual definition of radian measure.)
Half a circle, then, is π. And, most important, each right angle is half
Three right angles will be 3· |
π 2 |
= |
3π 2 |
. |
Five right angles will be |
5π 2 |
. And so on. |
Radians into degrees

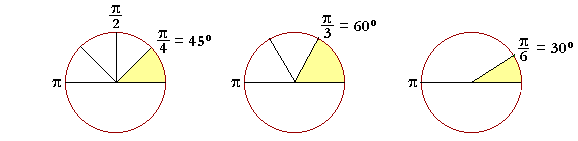

The student should have a clear picture of the following:
(Topic 6 and Topic 7.)
π 4 |
is half of |
π 2 |
, a right angle, and so it is equal to 45°. (Skill in |
Arithmetic, Multiplying and dividing fractions, Question 5.)
Equivalently, |
π 4 |
is of one quarter of π. |
π 3 |
is a third of π, and so is equal to 180° ÷ 3 = 60°.
|
π 6 |
is a sixth of π, and so is equal to 180° ÷ 6 = 30°. |

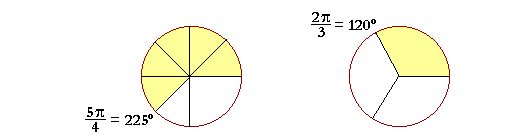

5π 4 |
= 5· |
π 4 |
= 5· 45° = 225°. |
2π 3 |
is a third of 2π. A third of a revolution = 360° ÷ 3 = 120°. |
Problem 1. Convert each of these radian measures into degrees.
Problem 1. The student should know these.
To see the answer, pass your mouse over the colored area. To cover the answer again, click "Refresh" ("Reload").
a) π
180° |
b) |
π 2 |
90°
|
c) |
π 3 |
60°
|
d) |
π 6 |
30°
|
e) |
π 4 |
45°
|
Problem 2. Convert each of these radian measures into degrees.
a) |
π 8 |
|
22½°. |
π 8 |
is half of |
π 4 |
. |
b) |
2π 5 |
|
72°. |
2π 5
| is a fifth of 2π |
, which is a fifth of a 360°. |
c) |
7π 4 |
|
= 7· |
π 4
| = 7· 45° = 315° |
d) |
9π 2 |
|
= 9· |
π 2
| = 9· 90° = 810° |
e) |
4π 3 |
|
= 4· |
π 3
| = 4· 60° = 240° |
f) |
5π 6 |
|
= 5· |
π 6
| = 5· 30° = 150° |
g) |
7π 9 |
|
|
Problem 3. Evaluate the following. (See Topic 6 and Topic 7.)
a) cos |
π 6 |
= |
2 |
|
b) sin |
π 6 |
= |
1 2 |
|
c) tan |
π 4 |
= |
1 |
|
d) cot |
π 3 |
= |
1
|
|
e) csc |
π 6 |
= |
2 |
|
f) sec |
π 4 |
= |
|
Problem 4. In terms of radians, what angle is the complement of an
Problem 5. A function of any angle is equal to the cofunction of its complement. (Topic 5.) Therefore, in terms of cofunctions:
a) sin θ = |
cos ( |
π 2 |
− |
θ |
) |
|
b) cot θ = |
tan ( |
π 2 |
− |
θ |
) |
Degrees into radians
360° = 2π. 180° = π.
When we write, 180° = π, we mean that it equals π radians, which is approximately 3.14 radians. However, we normally omit the word radians. For, as we will see in the next Topic, Arc length, the radian measure can be any number.
Example 1. Convert 120° into radians.
Solution. We can go from what we know to what we don't know. Since
120° = 2· 60° = = 2· |
π 3 |
= |
2π 3 |
. |
Or, since 120° is a third of 360°, which is 2π, then
Example 2. 225° = 180° + 45° = π + |
π 4 |
= |
5π 4 |
In general, proportionally,
so that
Example 3. Change 140° to radians.
Solution. |
140 180 |
· π |
= |
7 9 |
· π |
= |
7π 9 |
, |
upon dividing both the numerator and denominator first by 10 and then by 2. (Lesson 21 of Arithmetic, and Lesson 1.)
Problem 6. Change each of the following into radians.
a) 0° |
0 radians |
b) 180° |
π |
c) 90° |
π 2 |
d) 45° |
π 4 |
e) 270° |
3π 2 |
f) 60° |
π 3 |
g) 30° |
π 6 |
h) 720° |
= 2· 360° = 2· 2π = 4π |
i) 210° |
= 7· 30° = 7· |
π 6 |
= |
7π 6 |
j) 300° |
= 5· 60° = 5· |
π 3 |
= |
5π 3 |
k) 135° |
= 90° + 45° = |
π 2 |
+ |
π 4 |
= |
3π 4 |
l) 72° = |
72 180 |
· π = |
2 5 |
· π = |
2π 5 |
Coterminal angles

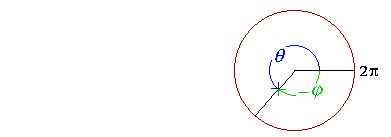

Angles are coterminal if they have the same terminal side.
θ is coterminal with −φ. They have the same terminal side.
Notice that
θ + φ = 2π,
so that
θ = 2π − φ . . . . . . . . (1)
Example 4. Name in radians the non-negative angle that is coterminal
with − |
2π 5 |
, and is less than 2π. |
Answer. Let us call that angle θ. Then according to line (1),
θ = 2π − |
2π 5 |
= |
10π − 2π 5 |
= |
8π 5 |
See Lesson 23 of Algebra, Example 7.
Problem 7. Name in radians the non-negative angle that is coterminal with each of the following, and is less than 2π.
a) − |
π 6 |
|
θ = 2π − |
π 6 |
= |
12π − π 6 |
= |
11π 6 |
b) − |
3π 4 |
|
θ = 2π − |
3π 4 |
= |
8π − 3π 4 |
= |
5π 4 |
c) − |
4π 3 |
|
θ = 2π − |
4π 3 |
= |
6π − 4π 3 |
= |
2π 3 |

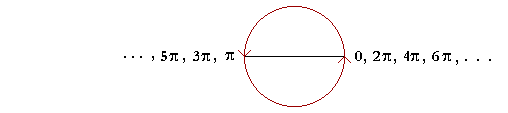

The multiples of π
Starting at 0, let us go around the circle a half-circle at a time. We will then have the following sequence, which are the multiples of π:
0, π, 2π, 3π, 4π, 5π, etc.
The point to see is that the odd multiples of π,
π, 3π, 5π, 7π, etc.
are coterminal with π. While the even multiples of π,
2π, 4π, 6π, etc.
are coterminal with 0.

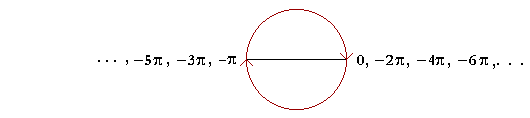

If we go around in the negative direction,
we can make a similar observation.
Problem 8. Name in radians the non-negative angle that is coterminal with each of the following, and is less than 2π.
a) -π
π
b) -2π
0
c) -3π
π
d) -4π
0
e) -5π
π
f) 3π
π
g) 4π
0
h) 5π
π
i) 6π
0
j) 7π
π
Next
Topic: Arc Length
