21
LOGARITHMIC AND EXPONENTIAL FUNCTIONS
Exponential and logarithmic equations
THE LOGARITHMIC FUNCTION WITH BASE b is the function
y = logb x.

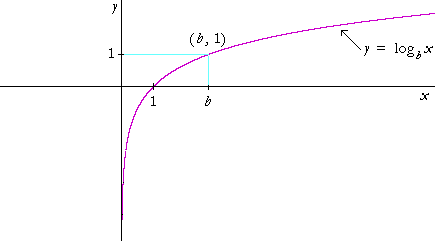

b is normally a number greater than 1 (although it need only be greater than 0 and not equal to 1). The function is defined for all x > 0. Here is its graph for any base b.
Note the following:
• For any base, the x-intercept is 1. Why?
To see the answer, pass your mouse over the colored area.
To cover the answer again, click "Refresh" ("Reload").
The logarithm of 1 is 0. y = logb1 = 0.
• The graph passes through the point (b, 1). Why?
The logarithm of the base is 1. logbb = 1.
| • | The graph is below the x-axis -- the logarithm is negative -- for |
| 0 < x < 1. | |
| Which numbers are those that have negative logarithms? | |
| • | The function is defined only for positive values of x. |
| logb(−4), for example, makes no sense. Since b is always positive, no power of b can produce a negative number. | |
• The range of the function is all real numbers.
• The negative y-axis is a vertical asymptote (Topic 18).

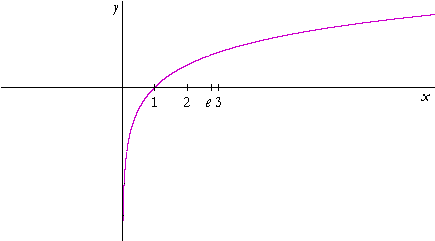

Example 1. Translation of axes. Here is the graph of the natural logarithm, y = ln x (Topic 20).

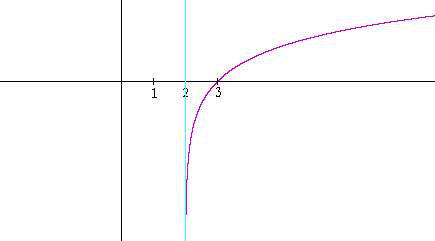

And here is the graph of y = ln (x − 2) -- which is its translation 2 units to the right.
The x-intercept has moved from 1 to 3. And the vertical asymptote has moved from 0 to 2.
Problem 1. Sketch the graph of y = ln (x + 3).
This is a translation 3 units to the left. The x-intercept has moved from 1 to −2. And the vertical asymptote has moved from 0 to −3.
Exponential functions
The exponential function with positive base b > 1 is the function
y = bx.

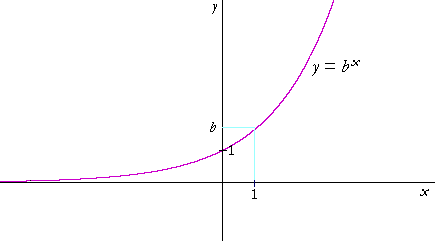

It is defined for every real number x. Here is its graph:
There are two important things to note:
• The y-intercept is at (0, 1). For, b0 = 1.
• The the negative x-axis is a horizontal asymptote. For, when x is a large negative number -- e.g. b−10,000 -- then y is a very small positive number.
Problem 2.
a) Let f(x) = ex. Write the function f(−x).
f(−x) = e−x
b) What is the relationship between the graph of y = ex and the graph
b) of y = e−x ?
y = e−x is the reflection about the y-axis of y = ex.
c) Sketch the graph of y = e−x.
Inverse relations
The inverse of any exponential function is a logarithmic function. For, in any base b:
i) blogbx = x,
and
ii) logbbx = x.
Rule i) embodies the definition of a logarithm: logbx is the exponent to which b must be raised to produce x.
Rule ii) we have seen before (Topic 20).
Now, let
f(x) = bx and g(x) = logbx.
Then Rule i) is f(g(x)) = x.
And Rule ii) is g(f(x)) = x.
These rules satisfy the definition of a pair of inverse functions (Topic 19). Therefore for any base b, the functions
f(x) = bx and g(x) = logbx
are inverses.
Problem 3. Evaluate the following.
| a) log225 | = 5 | b) log 106.2 | = 6.2 | c) ln ex + 1 | = x + 1 | ||
| d) 2log25 | = 5 | e) 10log 100 | = 100 | f) eln (x − 5) | = x − 5 | ||
Problem 4.
a) What function is the inverse of y = ln x (Topic 19)?
y = ex.
b) Let f(x) = ln x and g(x) = ex, and show that f and g satisfy the
b) inverse relations.
f(g(x)) = eln x = x,
g(f(x)) = ln ex = x.

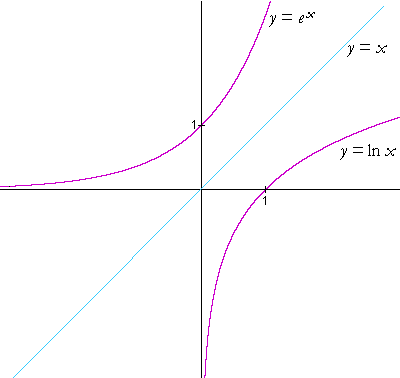

Here are the graphs of y = ex and y = ln x :
As with all pairs of inverse functions, their graphs are symmetrical with respect to the line y = x. (See Topic 19.)
Problem 5. Evaluate ln earccos (−1).
ln earccos (−1) = arccos (−1) = π.
See Topic 20 of Trigonometry.
Exponential and logarithmic equations
Example 2. Solve this equation for x :
5x + 1 = 625
Solution. To "release" x + 1 from the exponent, take the inverse function -- the logarithm with base 5 -- of both sides. Equivalently, write the logarithmic form (Topic 20).
| log55x + 1 | = | log5625 | |
| x + 1 | = | log5625 | |
| x + 1 | = | 4 | |
| x | = | 3. | |
Example 3. Solve for x :
2x − 4 = 3x
Solution. We may take the log of both sides either with the base 2 or the base 3. Let us use base 2:
| log22x − 4 | = | log23x | |
| x − 4 | = | x log23, according to the 3rd Law | |
| x − x log23 | = | 4 | |
| x(1 − log23) | = | 4 | |
| x | = | 4 1 − log23 |
|
log23 is some number. The equation is solved.
Problem 6. Solve for x :
| 2x − 5 | = | 32 | |
| log22x − 5 | = | log232 | |
| x − 5 | = | 5 | |
| x | = | 10 | |
Problem 7. Solve for x. The solution may be expressed as a logarithm.
103x − 1 = 22x + 1
| log 103x − 1 | = | log 22x + 1 | |
| 3x − 1 | = | (2x + 1) log 2 | |
| 3x − 1 | = | 2x log 2 + log 2 | |
| 3x − 2x log 2 | = | 1 + log 2 | |
| x(3 − 2 log 2) | = | 1 + log 2 | |
| x | = | 1 + log 2 3 − 2 log 2 |
|
Problem 8. Solve for x :
| esin x | = | 1 | |
| ln esin x | = | ln 1 | |
| sin x | = | 0 | |
| x is the radian angle whose sine is 0: | |||
| x | = | 0. | |
Example 4. Solve for x:
log5(2x + 3) = 3
Solution. To "free" the argument of the logarithm, take the inverse function -- 5x -- of both sides. That is, let each side be the exponent with base 5. Equivalently, write the exponential form.
| 2x + 3 | = | 53 | |
| 2x | = | 125 − 3 | |
| 2x | = | 122 | |
| x | = | 61 | |
Problem 9. Solve for x :
| log4(3x − 5) | = | 0 |
| If we let each side be the exponent with base 4, then | ||
| 3x − 5 | = | 40 = 1 |
| 3x | = | 6 |
| x | = | 2 |
Problem 10. Solve for x :
| log2(x² + 7) | = | 4 |
| x² + 7 | = | 24 = 16 |
| x² | = | 16 − 7 = 9 |
| x | = | ±3 |
Example 5. Solve for x:
log 2x + 1 = log 11
Solution. If we let each side be the exponent with base 10, then according to the inverse relations:
| 2x + 1 | = | 11. |
| That implies | ||
| x | = | 5. |
Problem 11. Solve for x:
ln (5x + 1) = ln (2x − 8).
If we let each side be the exponent with base e, then
| 5x + 1 | = | 2x − 8 |
| 3x | = | −9 |
| x | = | −3. |
One logarithm
Example 6. Use the laws of logarithms (Topic 20) to write the following as one logarithm.
log x + log y − 2 log z
| Solution. log x + log y − 2 log z | = | log | xy − log z² |
| = | log | xy z² |
|
Problem 12. Write as one logarithm:
k log x + m log y − n log z
Example 7. According to this rule,
n = logbbn,
we can write any number as a logarithm in any base.
For example,
| 7 | = | log227 |
| 5.9 | = | log335.9 |
| t | = | ln et |
| 3 | = | log 1000 |
Problem 13.
| a) | 2 = ln e² | b) | 1 = ln e |
Example 8. Write the following as one logarithm:
logbx + n
| Solution. | logbx + n | = | logbx + logbbn |
| = | logbxbn | ||
Problem 14. Write as one logarithm:
log 2 + 3
| log 2 + 3 | = | log 2 + log 103 |
| = | log 2 × 103 | |
| = | log 2000 | |
Problem 15. Write as one logarithm:
ln A − t
| ln A − t | = | ln A − ln et |
| = | ln A + ln e−t | |
| = | ln Ae−t | |
Problem 16. Solve for x:
| log2x + log2(x + 2) | = | 3. |
| log2[x(x + 2)] | = | 3. |
| If we now let each side be the exponent with base 2, then | ||
| x(x + 2) | = | 23 = 8. |
| x² + 2x − 8 | = | 0 |
| (x − 2)(x + 4) | = | 0 |
| x | = | 2 or −4. |
See Skill in Algebra, Lesson 37.
We must reject the solution x = − 4, however, because −4 is not in the domain of log2x.
Problem 17. Solve for x.
| ln (1 + x) − ln (1 − x) | = | 1. |
 |
= | 1. |
| If we now let each side be the exponent with base e, then | ||
 |
= | e |
| 1 + x | = | e − ex |
| ex + x | = | e − 1 |
| (e + 1)x | = | e − 1 |
| x | = |  |
The student can now begin to see: To solve any equation for the argument of a function, take the inverse function of both sides.
This Topic concludes our study of functions and their graphs.
